Full-Chain Infrastructure for Water Electrolysis

​

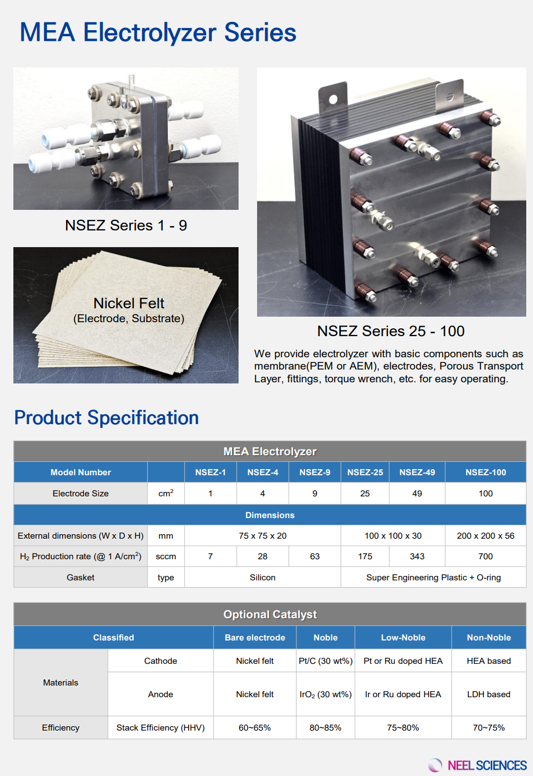

MEA Electrolyzer Series

MEA Electrolyzer (NSEZ)

1~100 cm² · PEM·AEM
H₂ 7~700 sccm ·  80~85% HHV
NSEZ-1 / 4 / 9 / 25 / 100

Direct application of catalysts based on research papers

Currently supplying to SNU, SKKU, Korea University, and others

스크린샷 2026-05-11 131228.png

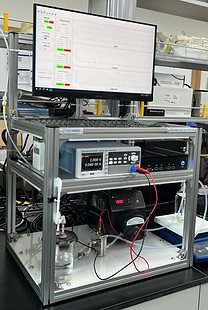

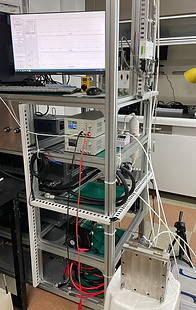

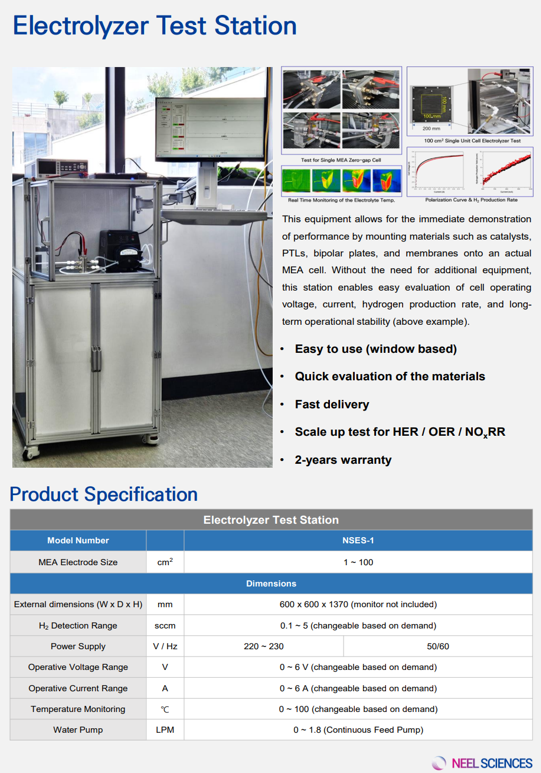

Electrolyzer Test Station

��수전해 테스트 스테이션 납품.jpg

Test Station (NSES-1)

1~100 cm²
60V / 25A / 600W
H₂ 0.1~300sccm · Control SW

50% cheaper than overseas prices, with immediate customer service

Completion of the four major deliveries for 2024–2025

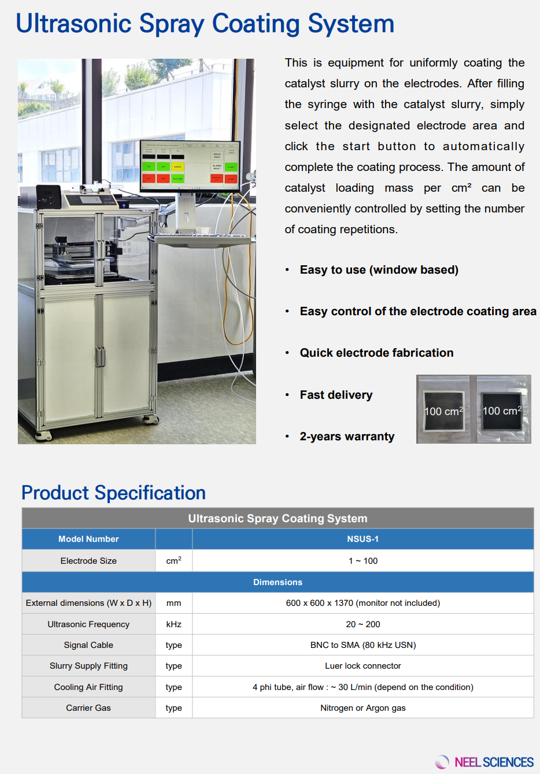

Ultrasonic Spray Coating System

Ultrasonic Spray Coating System (NSUS-1)

1~100 cm² Automation Coating
Ultrasonic 20~200 kHz
Control SW

Completion of the four major deliveries for 2024–2025

스크린샷 2026-05-11 132059.png

TECHNICAL SERVICES

- AI 및 기계학습 기반 촉매 및 물질 설계

- 전기화학 데이터 분석 서비스 제공

- 소재 물성 및 구조 분석 서비스 제공

- 과학적 사실 기반 2D/3D 일러스트

  디자인 서비스 제공
